Building Your Own Presenter

The Line Presenter and Options Presenter cover most games. If you want dialogue to look or behave differently, like speech bubbles over characters’ heads, you can write your own Presenter.

A Presenter is a script that extends YarnDialoguePresenter. The Dialogue Runner gives it each line and each set of options, and it decides how to show them.

How the Dialogue Runner uses Presenters

For each line, the Dialogue Runner calls run_line on every Presenter in its Presenters list, all at the same time. It moves on to the next line once every one of them has returned.

For each set of options, it calls run_options on every Presenter. The first one to return an option’s index decides which option was picked. The Dialogue Runner then tells the others to stop, and they return -1.

sequenceDiagram
  participant R as Dialogue Runner
  participant L as Line Presenter
  participant O as Options Presenter
  R->>L: run_line(line)
  R->>O: run_line(line)
  O-->>R: returns immediately
  L-->>R: returns once the player continues
  Note over R: Both have returned,<br>so the options start
  R->>L: run_options(options)
  R->>O: run_options(options)
  L-->>R: returns -1, it doesn't show options
  O-->>R: returns 1, the option the player picked
  Note over R: The dialogue carries on<br>after option 1

A Presenter has two jobs:

• in run_line, show the line, wait for as long as it needs to, then tidy up and return,
• in run_options, show the options, wait for the player to pick one, then return its index.

A simple Presenter

This Presenter shows each line in a Label, and each set of options as buttons. The player presses ui_accept, which is Enter, Space or a gamepad’s bottom face button, to move on to the next line.

class_name SimplePresenter
extends YarnDialoguePresenter

signal _option_chosen(index: int)

@export var label: Label
@export var options_box: VBoxContainer


func _unhandled_input(event: InputEvent) -> void:
	if event.is_action_pressed("ui_accept"):
		dialogue_runner.request_next_content()


func run_line(
		line: YarnLine,
		token: YarnCancellationToken = null
) -> void:
	label.text = line.text
	await token.wait_for_next_content()
	label.text = ""


func run_options(
		options: Array[YarnOption],
		token: YarnCancellationToken = null
) -> int:
	if token.is_next_content_requested:
		return -1
	for i in options.size():
		if not options[i].is_available:
			continue
		var button := Button.new()
		button.text = options[i].text
		button.pressed.connect(_option_chosen.emit.bind(i))
		options_box.add_child(button)

	var give_up := _option_chosen.emit.bind(-1)
	token.next_content_requested.connect(give_up)
	var index: int = await _option_chosen
	token.next_content_requested.disconnect(give_up)

	for button in options_box.get_children():
		button.queue_free()
	return index

To use it:

1. Build the nodes it needs: a Control with a VBoxContainer inside it, holding a Label and another VBoxContainer for the options.

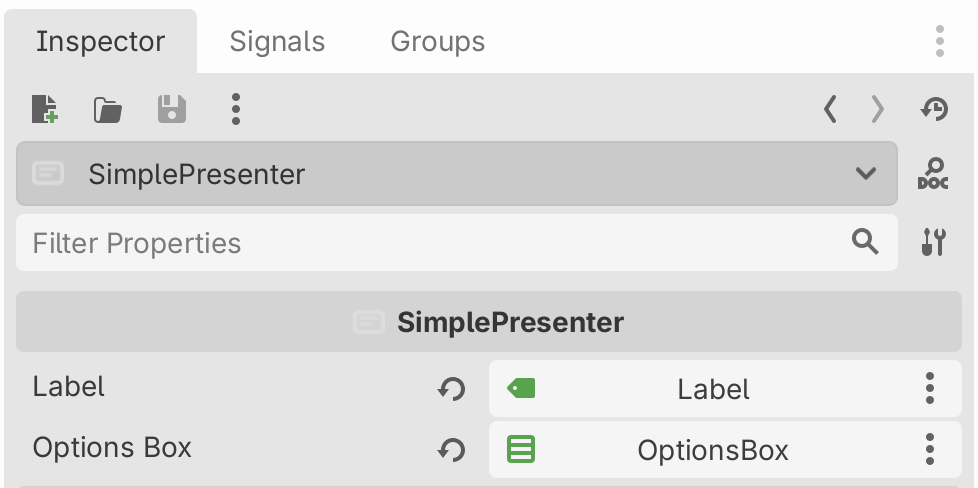

2. Attach the script to the Control, and set its Label and Options Box in the Inspector.

3. Add the Control to the Dialogue Runner’s Presenters list.

Showing lines

run_line gets the line as a YarnLine. The parts you’ll use most:

Follow these rules in run_line:

• Wait for whatever takes time before you return: a typewriter, an animation, audio, or token.wait_for_next_content().
• Return as soon as you can once the token asks for the next line. The Dialogue Runner can’t move on until you do.
• If your Presenter has nothing to show for a line, return immediately.
• Don’t call dialogue_runner.signal_content_complete(). The Dialogue Runner moves on by itself once every Presenter has returned.

If your Presenter decides when a line ends, like a voice-over Presenter whose clip has finished, call _request_line_end(line) instead. It asks the Dialogue Runner to move on, which fires the token for every Presenter, so they all finish together.

If a Presenter is still running five seconds after the token asked for the next line, the Dialogue Runner logs a warning naming it, because the dialogue is stuck waiting for it. Check that the Presenter returns once the token fires.

The token

Each call to run_line and run_options gets a YarnCancellationToken. It tells your Presenter what the player or your game has requested:

These happen when:

• the Line Presenter or a Line Advancer gets the player’s input,
• your own code calls dialogue_runner.request_hurry_up() or dialogue_runner.request_next_content(),
• another Presenter’s option is picked, or the Dialogue Runner’s Option Timeout runs out.

Showing options

run_options gets an array of YarnOption. Each has text, text_without_character_name and is_available, which is false when the option’s condition failed.

Return the index in the array of the option the player picked. Return -1 if your Presenter doesn’t handle options, or when the token says the dialogue is moving on.

Other functions you can use

If your Presenter has any of these functions, the Dialogue Runner calls them:

Using the Dialogue Runner from your Presenter

A Presenter’s dialogue_runner variable holds the Dialogue Runner that’s using it. If your Presenter is in the Dialogue Runner’s Presenters list in the Inspector, dialogue_runner is set by the time your Presenter’s _ready() runs, wherever the Presenter is in the scene tree. You can add Commands and Functions there:

extends YarnDialoguePresenter


func _ready() -> void:
	dialogue_runner.add_command("flash_portrait", _flash_portrait)


func _flash_portrait() -> void:
	$Portrait.modulate = Color.WHITE

If you add your Presenter from code, dialogue_runner is null until you’ve called add_presenter(). Don’t use it in _ready() in that case. Use on_dialogue_started() instead.

If several Dialogue Runners are in the scene, each Presenter gets the one that lists it.

YarnDialoguePresenter provides two functions for showing and fading your Presenter:

• _set_presenter_visible(visible) shows or hides the Presenter. If the Presenter is a Control or other CanvasItem, it shows or hides itself. Otherwise, it shows or hides the nodes directly under it.
• await _fade_presenter_alpha(from, to, duration) fades the Presenter’s transparency from one value to another, from 0 to 1, over duration seconds.

Without writing a Presenter

If you prefer connecting signals to writing a script, add a YarnSignalPresenter to your scene and add it to the Presenters list. It emits a signal for each line and each set of options, and waits until you tell it to continue.

After a line, call proceed() on the Signal Presenter to move on. After options, call choose_option(index) with the option the player picked.

line_data.text doesn’t include the speaker’s name. The name is in line_data.character_name, which is empty for a line with no speaker.

This script does the same job as the simple Presenter above, using a Signal Presenter. It goes on any node in the scene, here the root:

extends Node2D

@export var signal_presenter: YarnSignalPresenter
@export var label: Label
@export var options_box: VBoxContainer


func _ready():
	signal_presenter.line_received.connect(_on_line_received)
	signal_presenter.options_received.connect(_on_options)


func _unhandled_input(event: InputEvent) -> void:
	if event.is_action_pressed("ui_accept"):
		signal_presenter.proceed()


func _on_line_received(line_data: Dictionary) -> void:
	var speaker: String = line_data.character_name
	if speaker.is_empty():
		label.text = line_data.text
	else:
		label.text = speaker + ": " + line_data.text


func _on_options(options_data: Array) -> void:
	label.text = ""
	for option in options_data:
		if not option.is_available:
			continue
		var button := Button.new()
		button.text = option.text
		var index: int = option.option_index
		button.pressed.connect(_choose.bind(index))
		options_box.add_child(button)


func _choose(index: int) -> void:
	for button in options_box.get_children():
		button.queue_free()
	signal_presenter.choose_option(index)

Samples

These samples each have their own Presenter. Open them from the samples browser in the Yarn Spinner tab:

• Welcome builds slides on a projector screen from lines of dialogue.
• Background Chatter shows lines above the characters speaking them, and moves on without the player pressing anything.
• Phone Chat shows lines and options as chat bubbles in a messaging app.
• Options That Timeout shows a countdown bar under the options, and picks one when it runs out.
• Themed Line Presenter extends the Line Presenter, with its own styles and fonts.
